Integrated balance
capability test -
Left and right leg
muscle balance analysis -
Balance ability
improvement training
FRA System
FRA (Fall Risk Assessment) is a system designed to analyze fall risk by assessing body balance, lower limb muscle mass, and leg strength through a comprehensive evaluation. The analysis results are presented as an intuitive score, allowing users to monitor changes in body balance and recognize risk factors, enabling a more effective and differentiated management approach.
This system is not limited to balance ability assessment it also identifies individual fall risk factors and includes training modes to help improve balance ability.
Test Screen
-

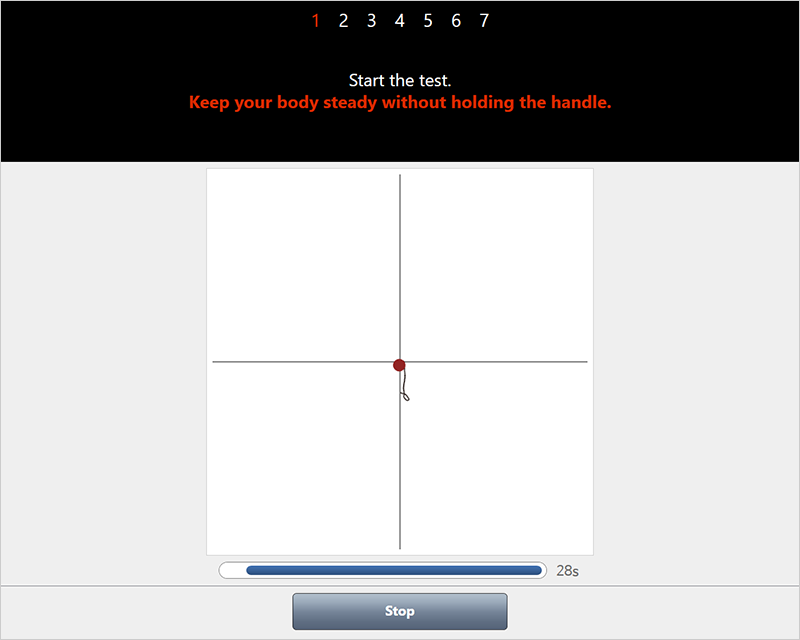

- Sensory System Test Screen
- This screen assesses the sensory factors affecting balance, including visual, somatosensory, and vestibular systems.
-

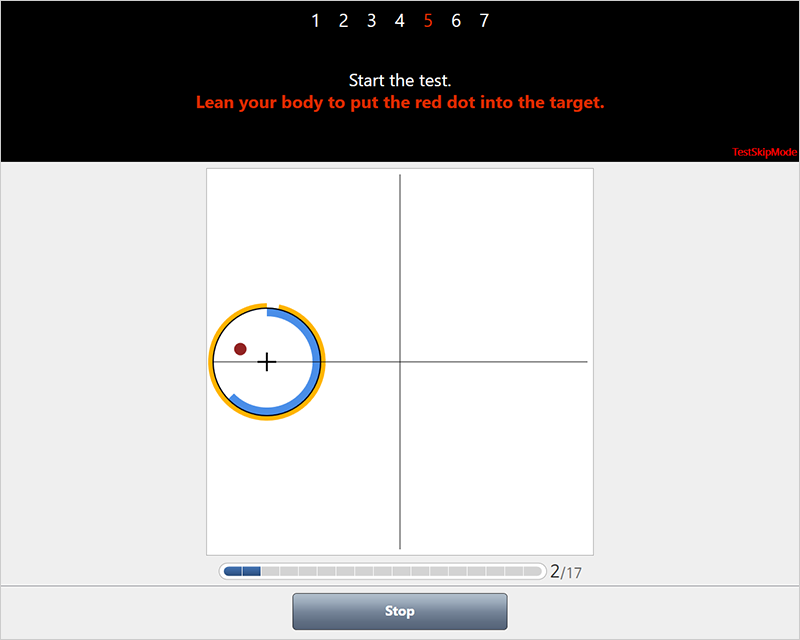

- Integrated Balance Ability Test Screen
- This test simultaneously evaluates sensory and nervous system functions to provide a comprehensive balance assessment.
-

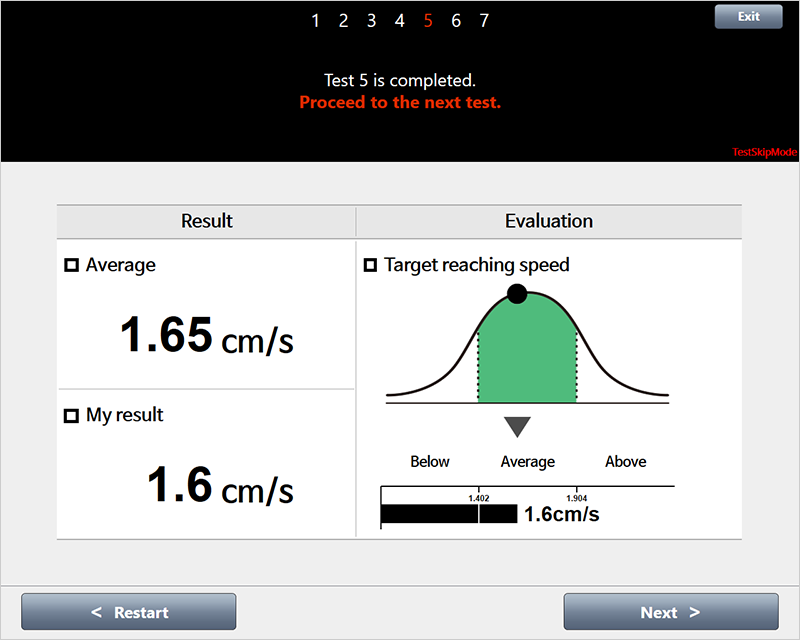

- Result Screen
- Once the test is completed, immediate feedback is provided through an intuitive display, enabling quick evaluation of the test results.

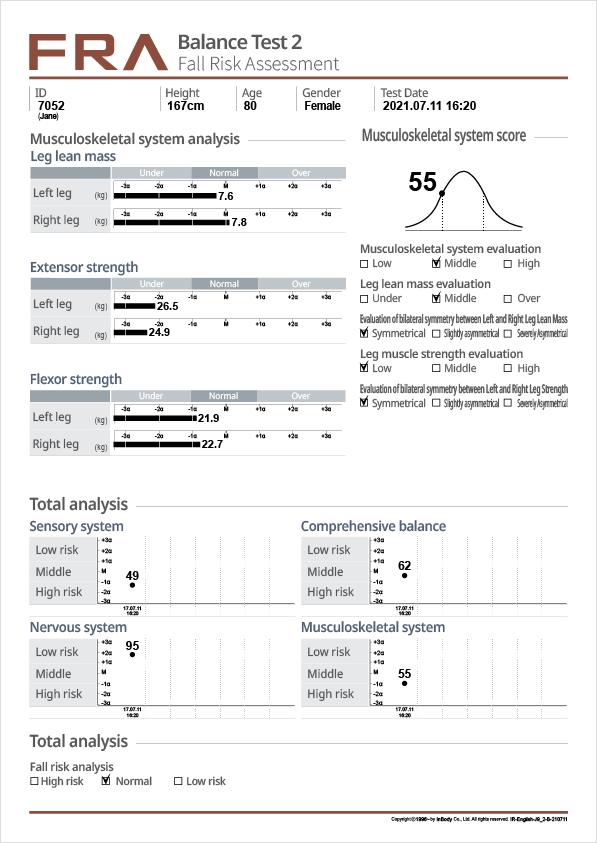

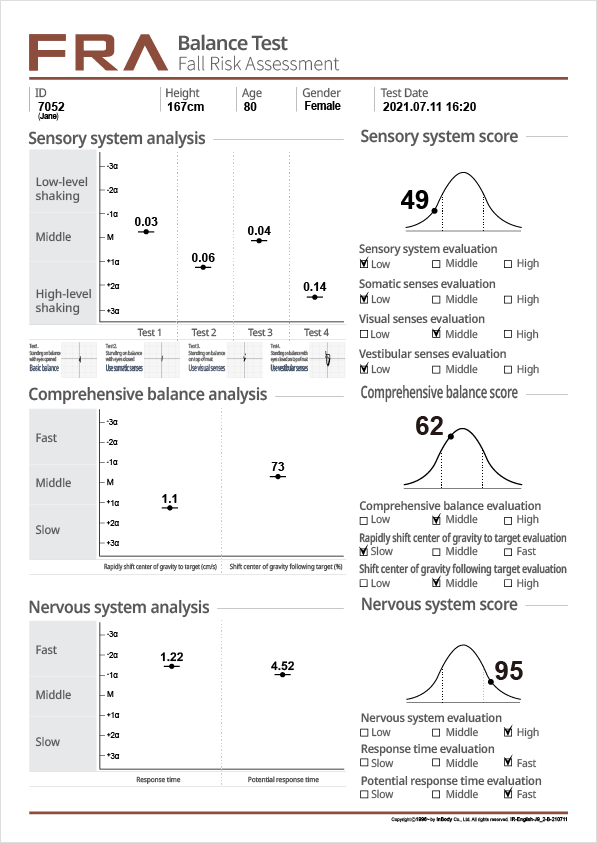

FRA results
Scores for each section, including the overall score, are provided on the four result sheets to help you understand quickly, and you can intuitively understand the results with graphs. The results consist of five parts, and user information such as personal information is shown at the top.
Specifications
-
- Measurement method
- Measuring weight at 4 Load-cells of footplate
- Outputs
- - Test 1~4 shaking index
- Sensory system score
- Reaction time
- esponse latency
- Nervous system score
- Along the target center of gravity moving safe arrival rate
- Fast safe arrival center of gravity moving safe arrival speed
- Integrated balance ability scores
- Right leg, Left leg, Muscle mass and Left-right-balance
- Right leg, Left leg, Muscle strength and Left-right-balance
- Muscular skeletal score
- Total score
- Optional equipment
- InBody (specific model) and Leg Muscular Strength System (IB-LS) from InBody
- Logo
- Name, Address, and Contact Information can be shown on the InBody Results Sheet
- Digital Result
- LCD screen
- Types of Result Sheets
- Balance Ability Test Results Sheet
-
- Voice guidance
- Provides audible indication for test in progress, personal information, and successfully saved settings changes
- Save
- Can be saved test results .
- Administrator Menu
- FRA510S setup and data management, according to inspection environment
- USB Thumb Drive
- Full data storage (extractable to Excel) or full data backup and restore
- Backup data
- Backup data saved in the FRA510S by using a USB Thumb Drive, Restore results on the FRA510S from a backup file
- Rated power supply
- AC 100-240V, 50-60 Hz, 2.0-1.0A
- Display
- 19-inch Color Touch Monitor
- Input interface
- Touch Screen
-
- External interface
- RS-232C 2EA, USB 2.0 Host 1EA, USB 3.0 Host 2EA, LAN(10T) 2EA
- Compatible printers
- Laser / Inkjet printer
- Dimensions
- Kiosk: 23 (W) × 25 (L) × 64 (H): in
Footplate: 33 (W) × 36 (L) × 34 (H): in
- Equipment weight
- Kiosk: 51kg
Footplate: 42.5kg
- Testing time
- About 10~15 min.
- Operation environment
- 10~40°℃, 30~75% RH, 70~106kPa
- Storage environment
- -10~70℃, 10~80% RH, 50~106kPa (No Condensation)
- Measurement range
- 0~150kg
* Specifications can be changed without a prior notice.
* This product is a medical device.
