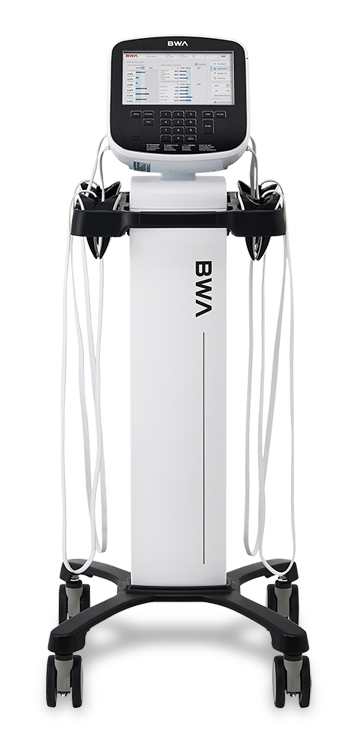

2nd generation Body Water Analyzer
BWA2.0

BWA2.0 is the world’s first BIA device to use 3MHz to improve the accuracy of the measurement and it also enabled to accurately measure severe edema patients. Not only did this increase the accuracy but it also provided a way to add parameters such as Multi-reactance(5kHz, 50kHz, 250kHz), Multi-phase angle(5kHz, 50kHz, 250kHz), and Segmental Phase-Angle.

The BWA2.0 clamp electrode is made up of two forceps that can measure the impedance of the center and the distal part respectively. The difference between the two impedances can be used as clinical indicators for wrist and ankle swelling. The clamp electrode also has an indicator function that can be attached between the wrist and ankle bones, which provides high reproducibility.

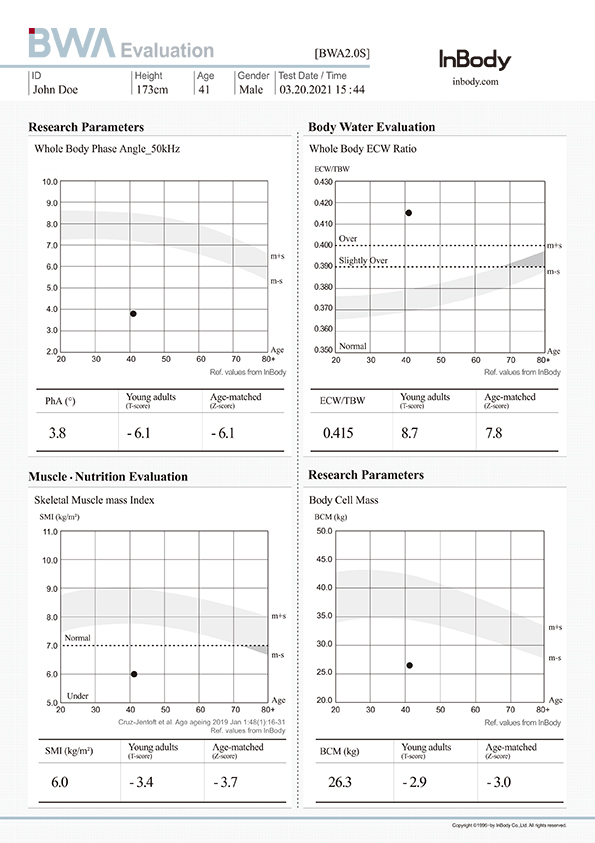

To comprehensively analyze the InBody result sheets by different age groups, the BWA2.0 provides graphs by age group on certain parameters. The BWA2.0 is able to provide these graphs because over the years InBody has collected about 3,800,000 Body Composition data(Dec.12), in which we call the InBody Big Data.

In addition to the Clamp Electrodes and InBody Big Data, it also provides various optional parameters such Water Control Calculator-that can easily set the Target Body Weight, Segmental Body Composition Analysis, user friendly Body Composition Analysis, and results/references so that researchers can use these information to accurately and systematically diagnosis.

What is measured?

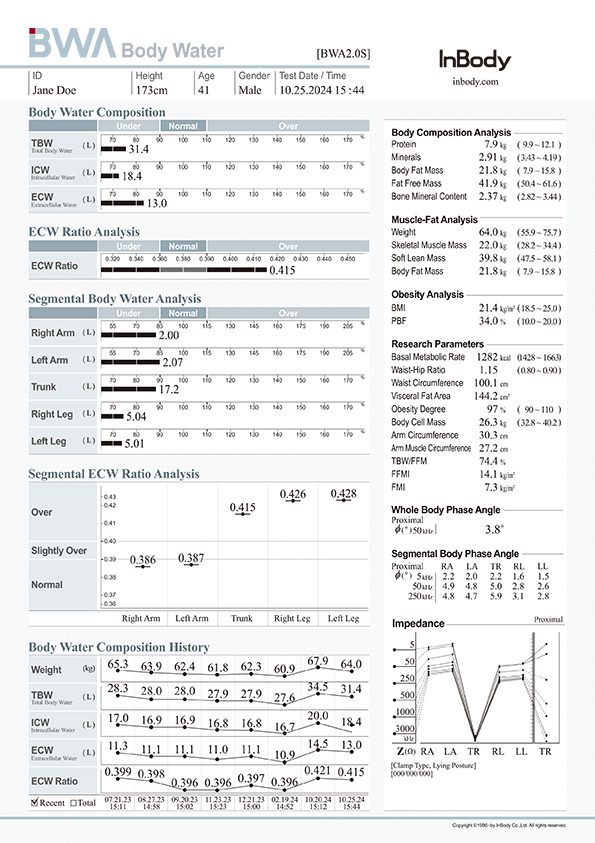

BODY WATER COMPOSITION HISTORY
Body Water Composition History monitors changes, providing valuable data to see how a patient is responding to a program and if modifications need to be made to improve their health.
WHOLE BODY PHASE ANGLE
Phase angle is a good indicator of cellular integrity. The InBody S10 provides whole body phase angle and segmental phase angle analysis at 50 kHz. The higher the phase angle, the healthier cellular integrity is. Phase angle values can be used to ensure a patient is receiving the appropriate vitamin and mineral intake.
NOTES FOR DIALYSIS PATIENTS
Segmental ECW/TBW reveals body water distribution in each individual body segment. This allows for monitoring of trends and detection of unusual shifts in fluid distribution that result from injury, aging, obesity and other health factors.

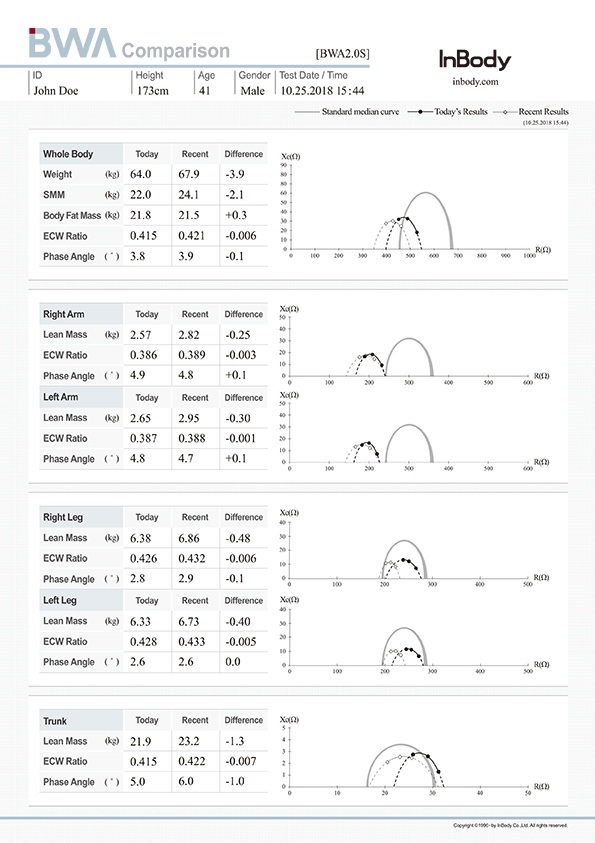

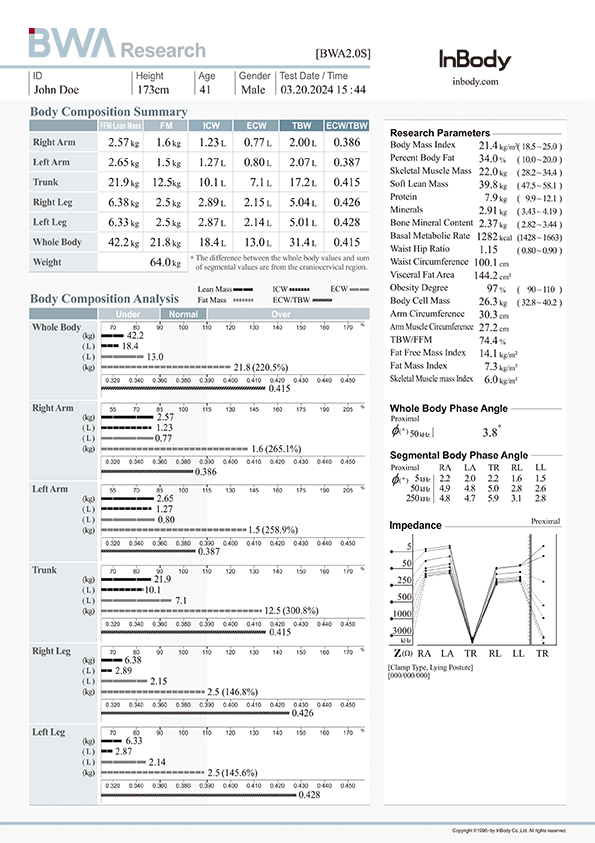

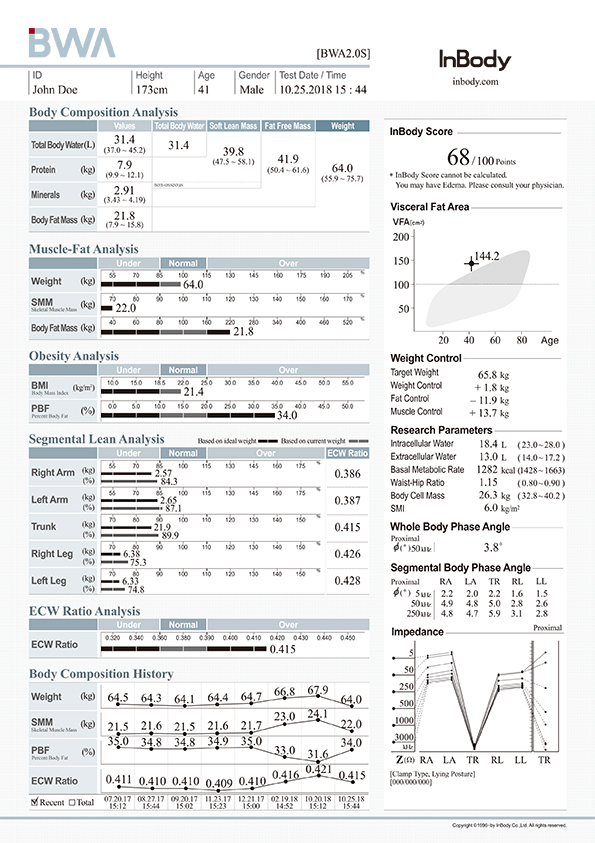

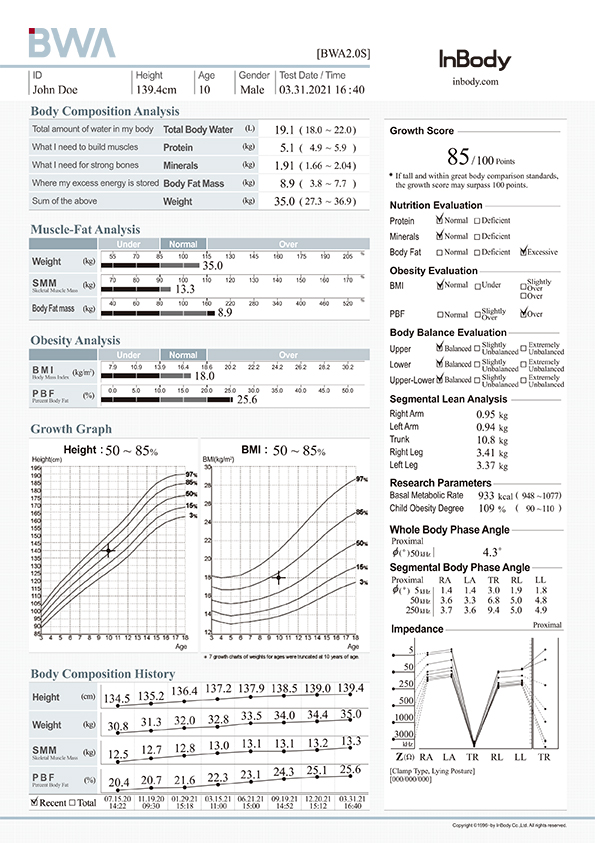

Explore the BWA2.0 Result Sheet

Dialysis Treatment
Segmental ECW/TBW reveals body water distribution in each individual body segment. This allows for monitoring of trends and detection of unusual shifts in fluid distribution that result from injury, aging, obesity and other health factors.
Track the changes in Body Water Composition History to see how a patient is responding to a program and if modifications need to be made to improve their health.
Malnutrition and Cancer Treatment
Phase angle is a good indicator of cellular integrity. The BWA2.0 provides whole body phase angle and segmental phase angle analysis at 50 kHz. The higher the phase angle, the healthier cellular integrity is. Phase angle values can be used to ensure a patient is receiving the appropriate vitamin and mineral intake.
