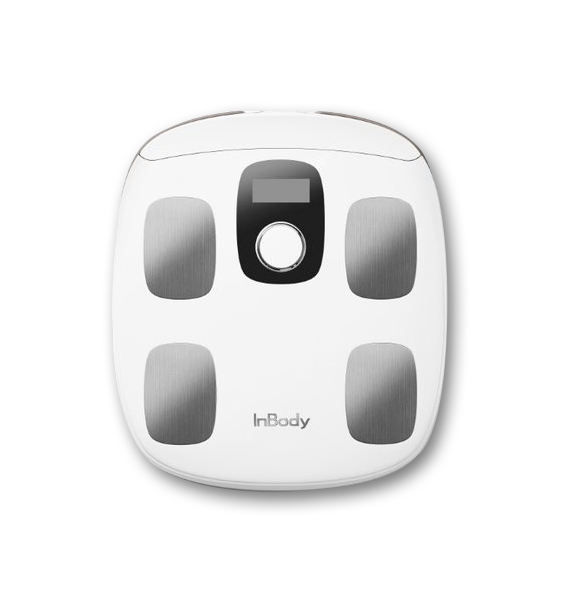

H30 Manual
Main Features

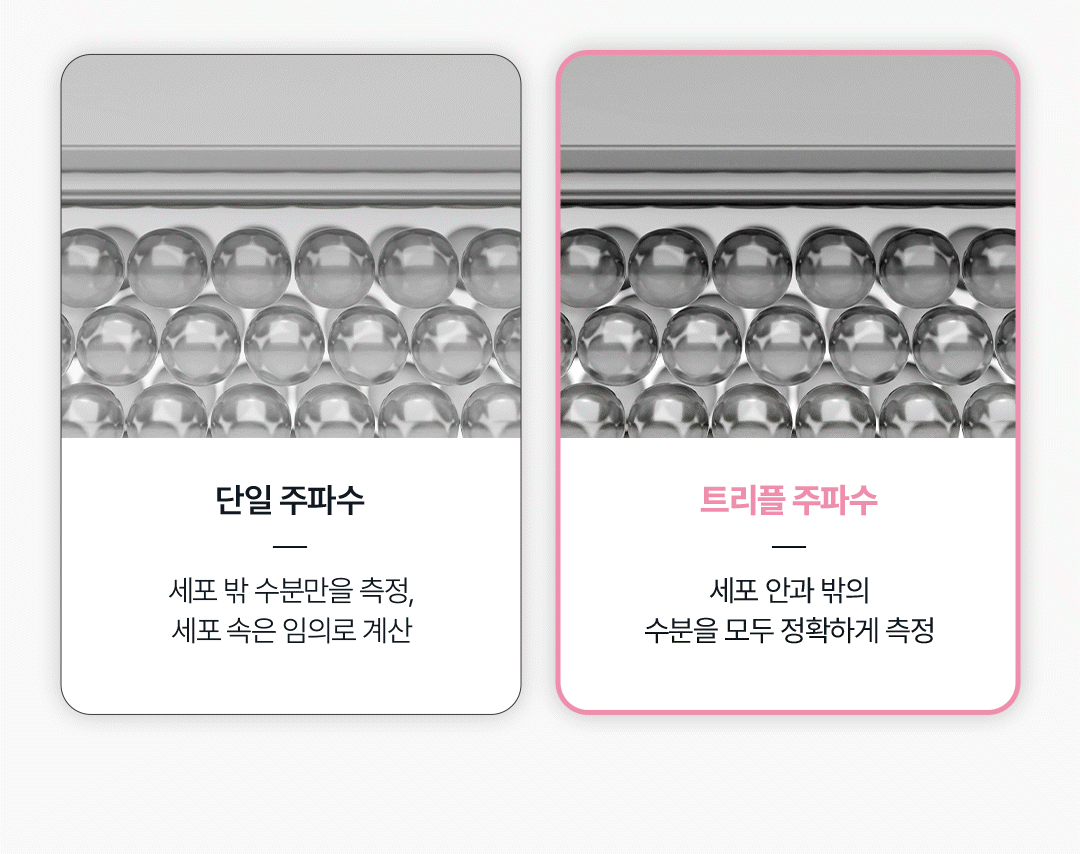

- Precise measurement with Triple frequency
- InBodyDial H30 uses a Triple Frequency technique to evaluate body composition, including the measurement of water content within your cells, leading to higher accuracy for at-home assessments.

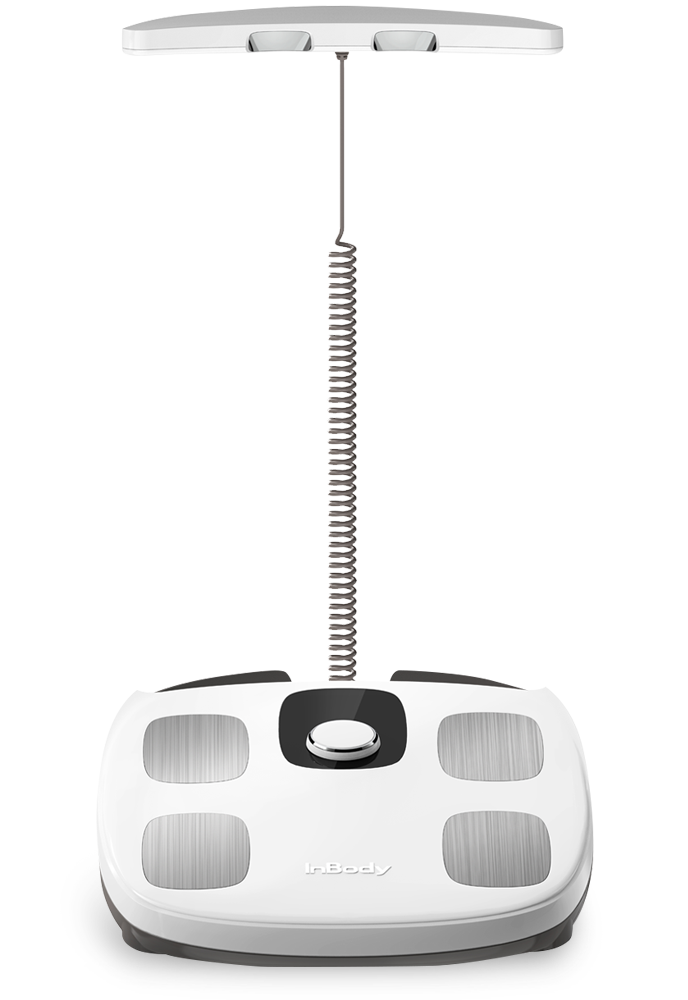

- Patented thumb electrodes
- How you grip the handle can affect your test result. From InBody’s patented thumb electrode, we achieve consistent results regardless of how handle is held.
- Automatic recognition feature
- InBody features an automatic user recognition, eliminating the need to prepare the device for a different user at each InBody test.
- WiFi Connection
- Once registered and connected, results automatically sync with the App, even if the device is disconnected or the phone is away.

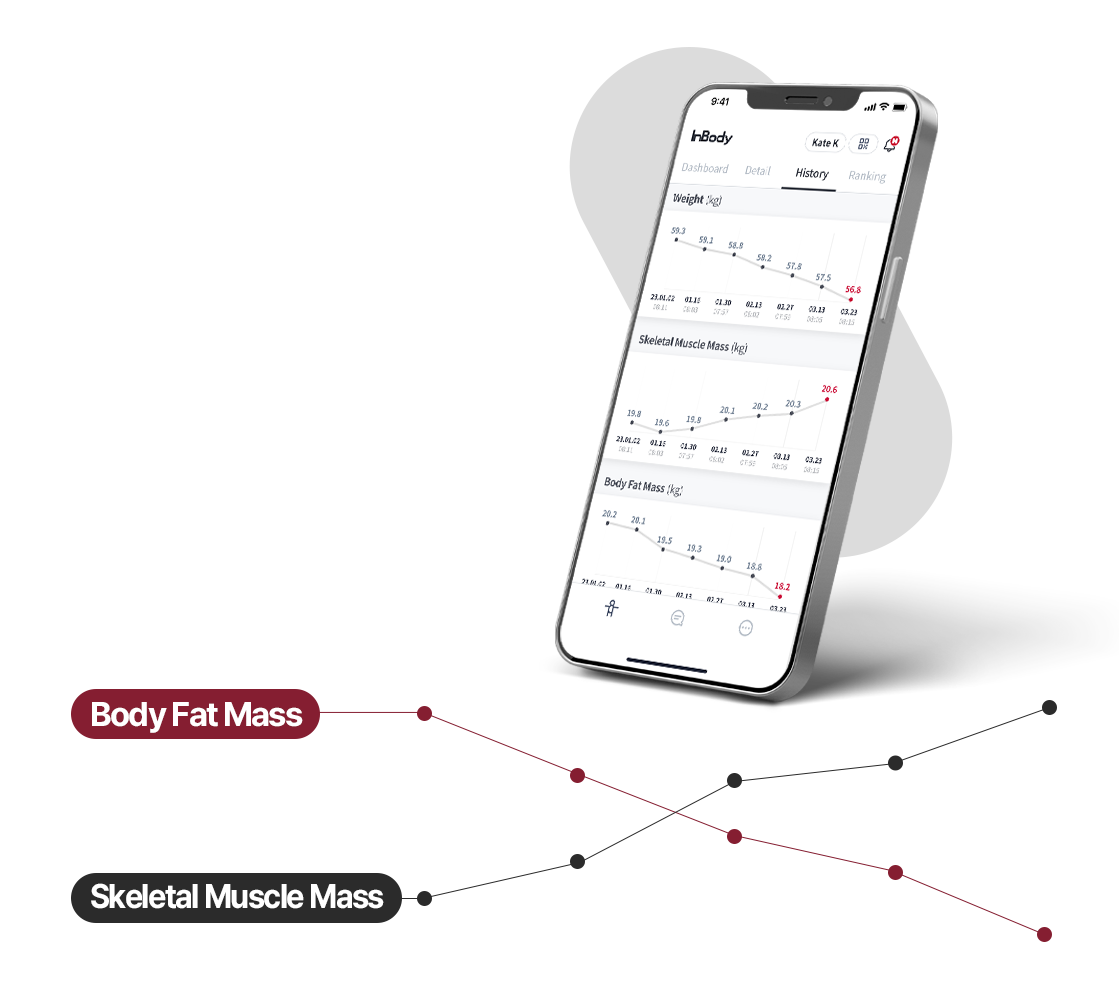

Access your data from the InBody App Anytime, Anywhere
The InBody App will present a graph that allows you visualize how your body composition data is changing each time you measure.

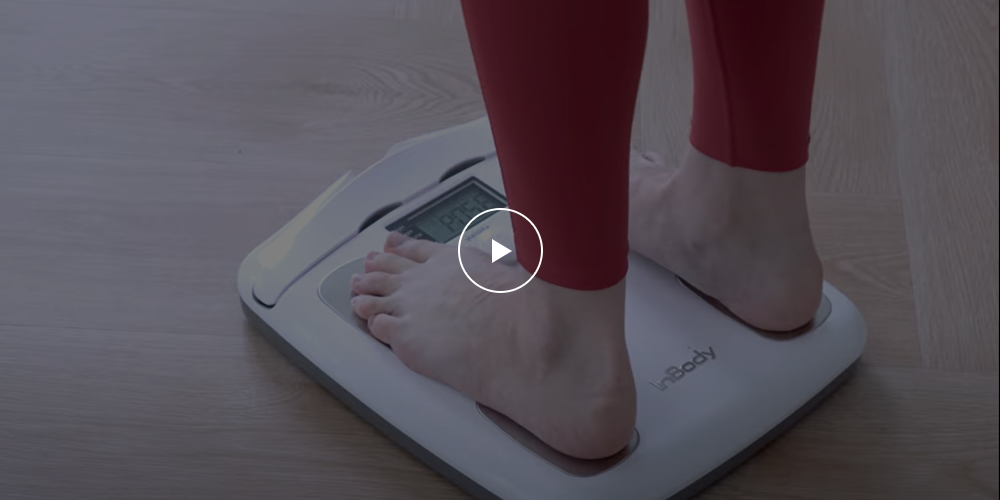

Correct methods for using InBodyDial
Product Specifications
| Electrode Method | 8-Point Tactile Electrodes |
|---|---|
| Measurement Method | Direct Segmental Multi-Frequency Bioelectrical Impedance Analysis Method (DSM-BIA) |
| Outputs (LCD) | Weight, Percent Body Fat, Skeletal Muscle Mass, Visceral Fat Level |
| Outputs (InBody App) | Weight, Skeletal Muscle Mass, Body Fat Mass, (BMI) Body Mass Index, Percent Body Fat, Waist-Hip Ratio, Visceral Fat Level, Soft Lean Mass, InBody Score, Body Balance Evaluation (Upper-Lower), (BMR) Basal Metabolic Rate, Body Type Coordinate |
| Test Duration | Impedance measurement (15 seconds or less) |
| Operating Environment | 10 – 40 ℃, 30 – 75 % RH, 70 – 106 kPa |
| Storage Environment | -10 – 70 ℃, 10 – 95 % RH, 50 – 106 kPa (No condensation) |
| Weight Range | 10 - 150 kg (22 - 330.7 lb) |
| Height Range | 95 - 220 cm (3 ft 1.40 in - 7 ft 2.61 in) |
| Testing Age | 3 years of age or older |
| Power consumption | DC 6V (1.5V AA battery 4 EA) |
| Display | 2.25 inch TFT LCD |
| Dimensions / W × L × H | 318 x 361 x 56 (mm) Approx. 2.5kg (12.5 x 14.2 x 2.2 (in) Approx. 5.5lb) |
* The InBody Dial H30 outputs shown on your InBody App may vary based on the country in which your InBody App is registered.
See our other models
Comparison
| Image |  |
 |
|
|---|---|---|---|
| Product name | H30N | H20N | |
| Color | White | White, Beige, Black | |
| Dimensions | 318 × 361 × 56 (mm) 12.5 × 14.2 × 2.2 (inch) |
310.3 × 356.4 × 58.3 (mm) 12.2 x 14.0 x 2.3 (inch) |
|
| Weight | 2.5 kg (5.5 lb) | 2.7 kg (5.9 lb) | |
| Wi-Fi | O | X | |
| Bluetooth | O (BLE 5.0) | O (BLE 4.1) | |
| BIA Measurement Items | 3 different frequencies | 2 different frequencies | |
| Back Light | O | X | |
| Waterproof Rating | IP21 | X | |
| Outputs (InBody App) | Weight, Skeletal Muscle Mass, Body Fat Mass, BMI, Percent Body Fat, Waist-Hip Ratio, Visceral Fat Level, Soft Lean Mass, InBody Score, Body Balance Evaluation, BMR, Body Type Coordinate | Weight, Skeletal Muscle Mass, Body Fat Mass, BMI, Percent Body Fat, Visceral Fat Level, InBody Score, BMR | |
