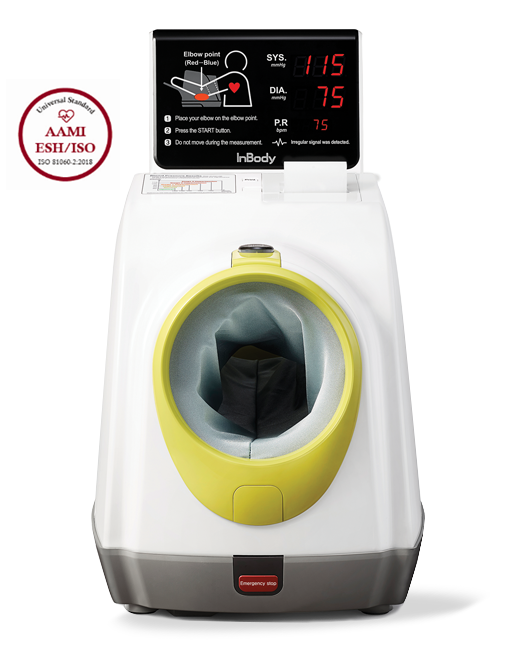

BPBIO750

Kiosk-type Blood Pressure Monitor

The moving cuff and the elbow sensor induce correct measuring posture.

  • Quick Self-Measurement

    With an intuitive design and voice guidance, users can measure their blood pressure in 45 seconds just by pressing the “Start” button.

  • Contact-free

    To enhance sanitary testing conditions, the BPBIO 750 is available with a disposable cuff barrier.

  • Clinically validated

    The accuracy of BPBIO750 is clinically validated according to the AAMI/ESH/ISO protocol.

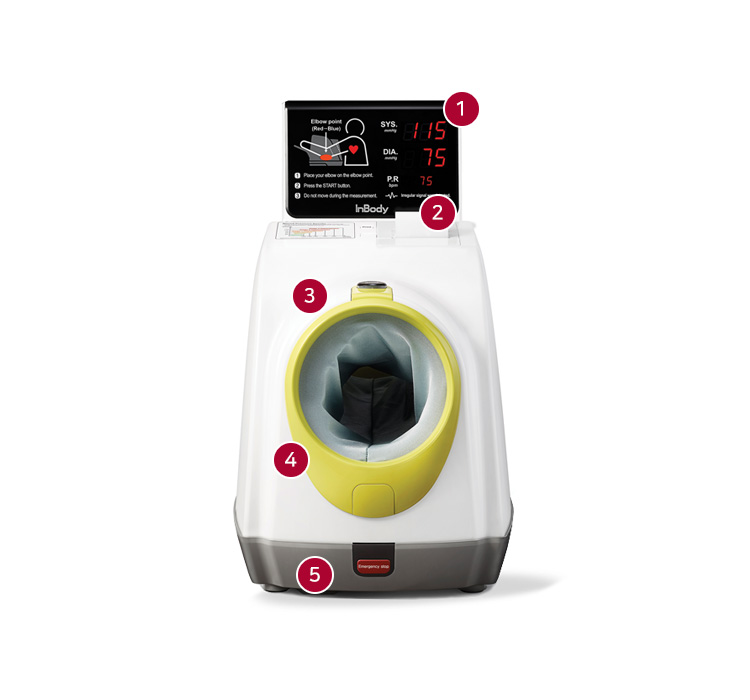

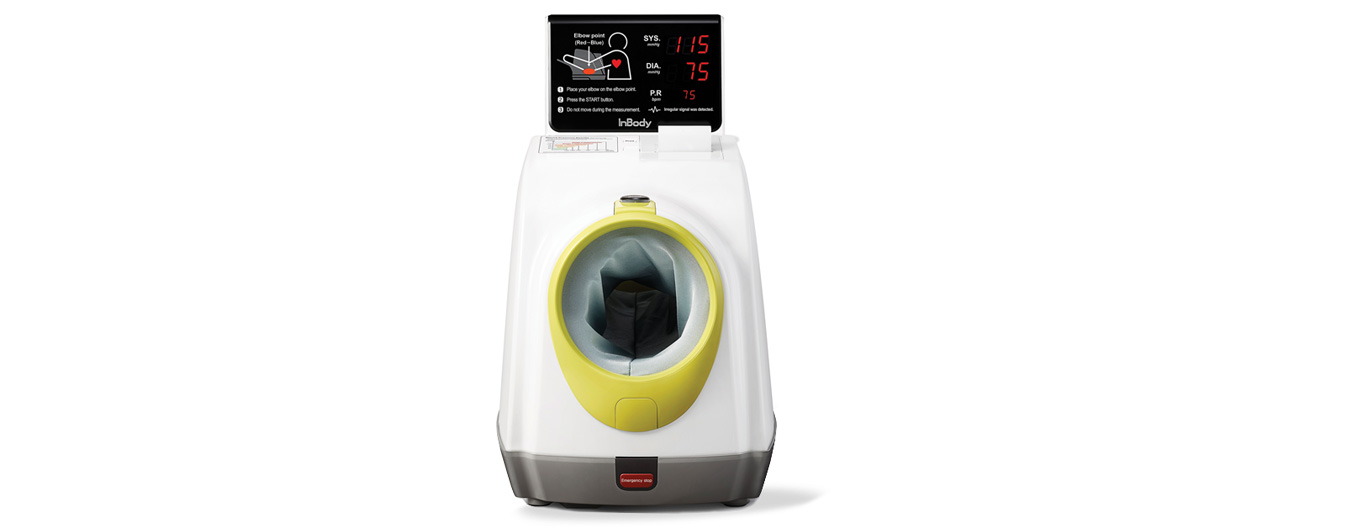

Key Features

1.Voice guide
2.Quick printout
3.One-touch measurement
4.Moving Elbow Sensor
Moving Cuff
5.Emergency stop button

InBody Technology

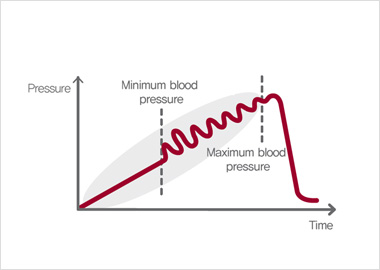

  • Inflationary Oscillometric Method
    Allows personalizing the amount of pressure applied to the user’s upper arm, so the user may feel less pain while measuring.

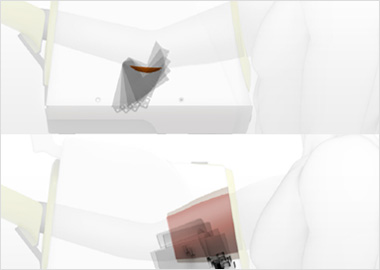

  • Moving Cuff & Moving Elbow Sensor
    Induce correct posture for accurate measurement.

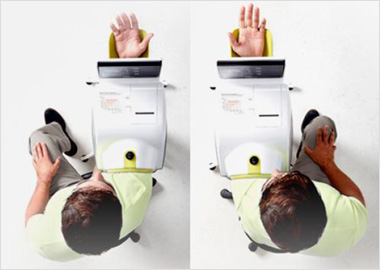

  • Either Arm Measurement
    Users may use either the right or left arm for the measurement.

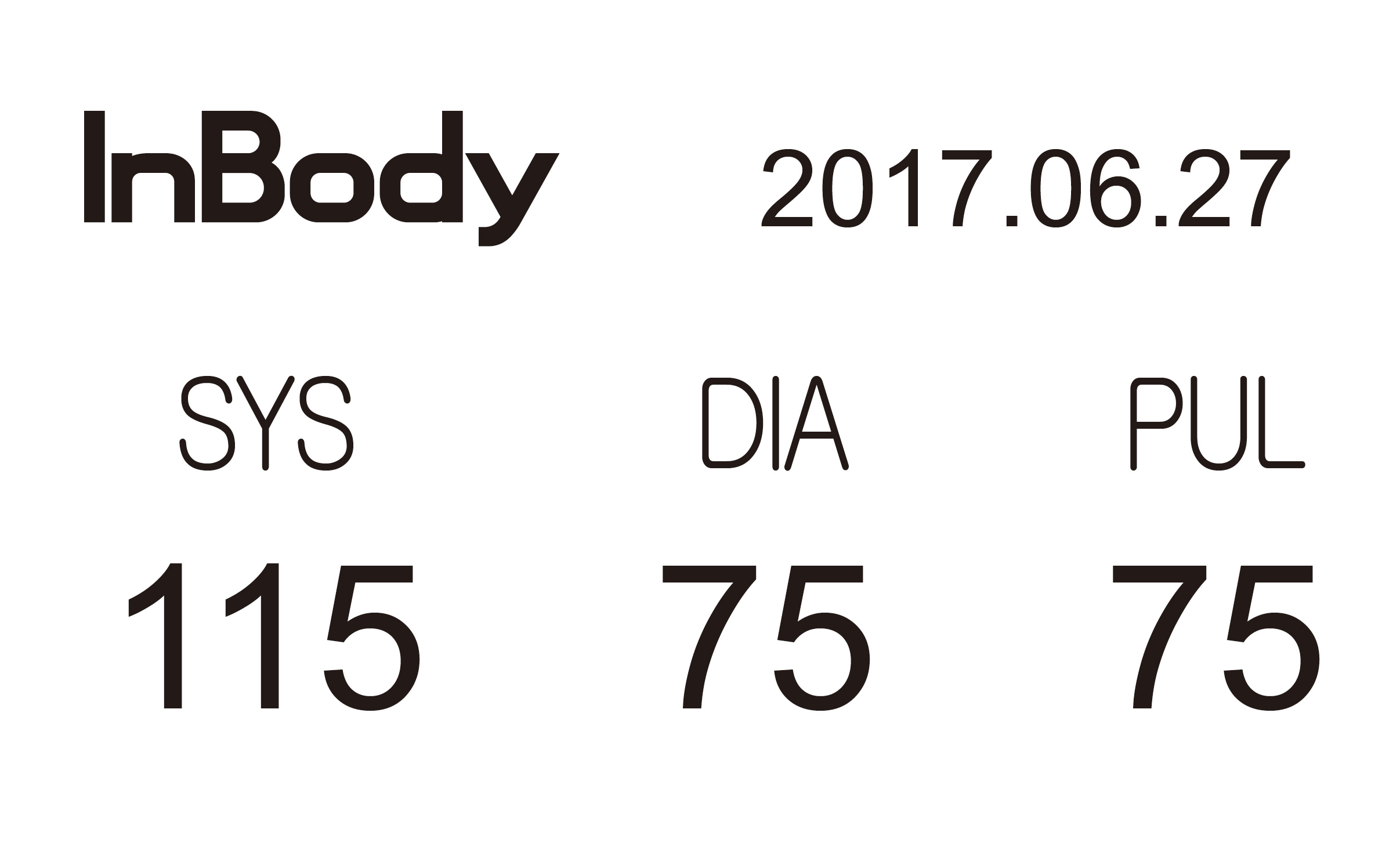

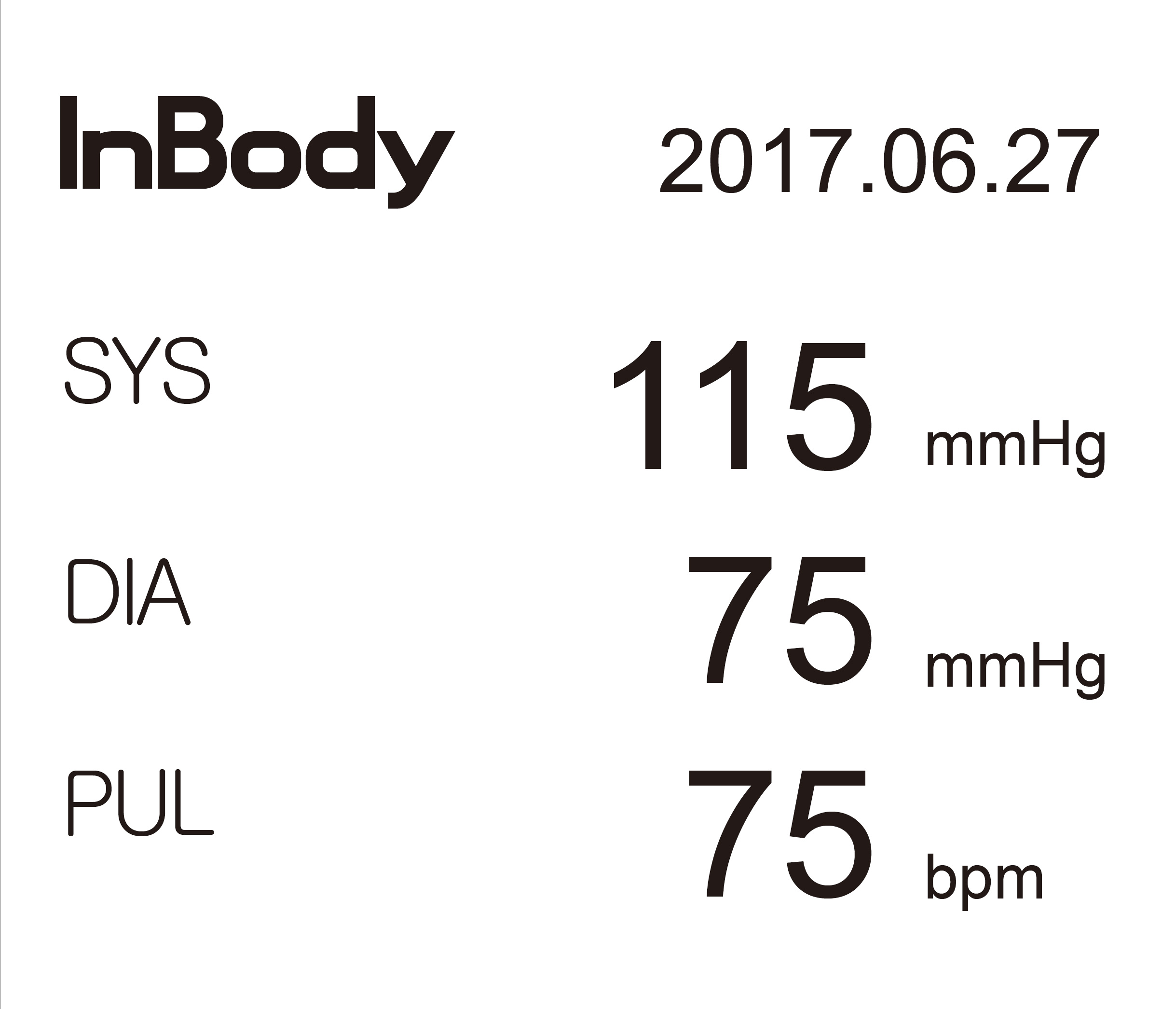

BPBIO750 Test Result Sheet

Customize result sheet with your favorable outputs
The clinically validated BPBIO750 records a user’s systolic and diastolic blood pressure, mean arterial pressure, pulse pressure, pulse, and rate pressure product, pulse envelope, blood pressure graph, check posture, motion detection, and blood pressure knowledge.

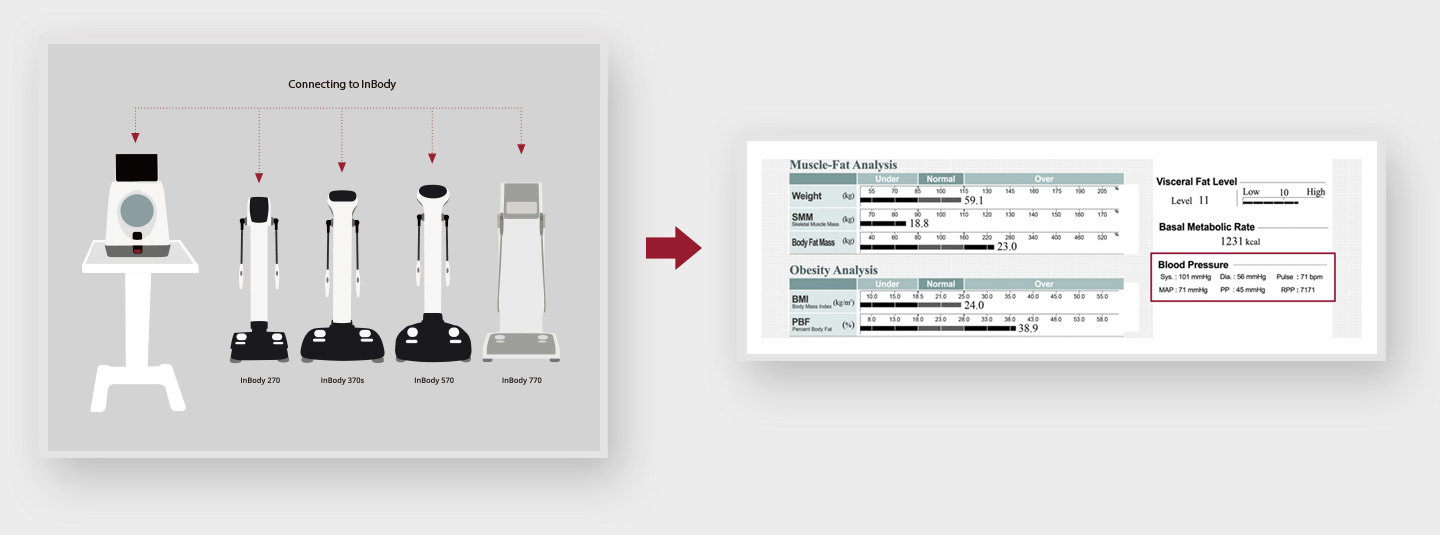

You can transfer your blood pressure values onto the InBody result sheet by connecting
the BPBIO750 to an InBody professional device (270, 370S, 570, or 770)

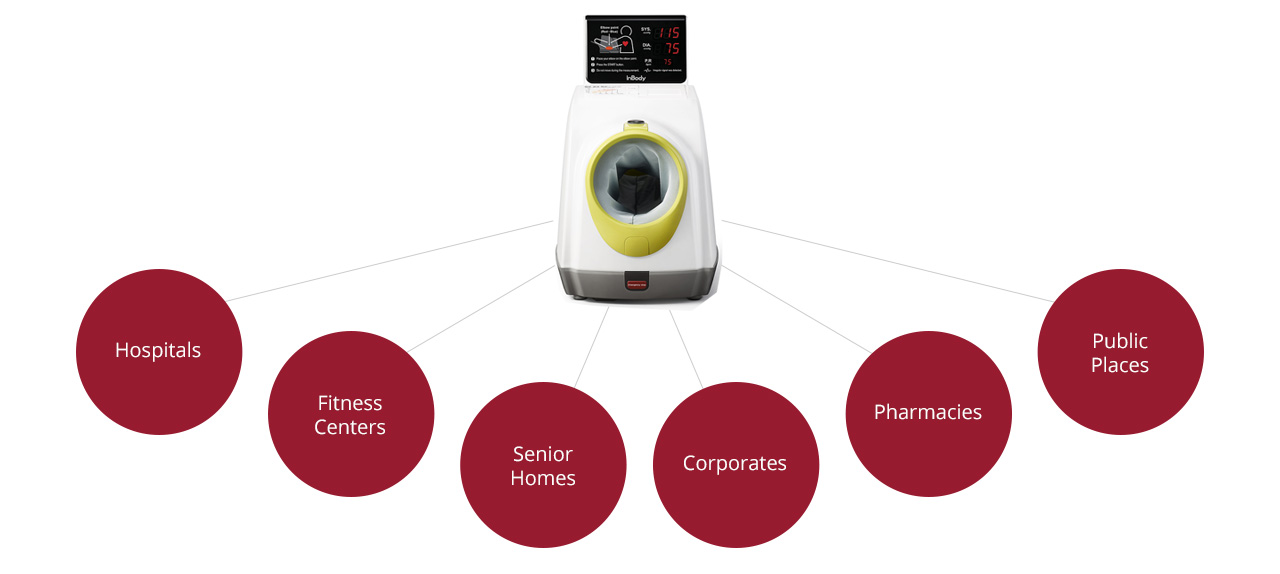

Points of Use

BPBIO750 can be used in various environments such as hospitals, fitness centers,
senior homes, pharmacies, corporates, and other public places.

Specifications

  • Measurement method
    Oscillometric method
    Range of measurement
    Pressure: 0~300 mmHg, Pulse: 30~240 bpm
    Degree of precision
    Pressure: ± 3 mmHg, Pulse: within ± 2%
    Measurement time
    Approx. 30 seconds on average (20-50 seconds depending on the pulse and blood pressure value)
    Applicable arm circumference
    17~42 cm
    Display type
    7-Segment LED
  • Printer
    High-speed thermal printer
    Dimensions
    Approx. 299 (W) × 547 (D) × 485 (H) mm
    Weight
    Approx. 7.1 kg
    External interface
    RS232C (USB compatible when USB dedicated cable is used)
    Power source
    AC 100~120 / 200~240V, 50 / 60Hz, 36VA
  • Optional items
    Dedicated desk, height-adjustable dedicated chair
    Voice guidance
    Guide for self measurement
    Motion sensor
    A sensor to detect human presence in front of device
    Start/Stop button
    Two Start/Stop buttons in the front and back side of device
    Emergency stop button
    Emergency stop button in the front side of device
